<MIT engineers develop largest quantum chip of its type>



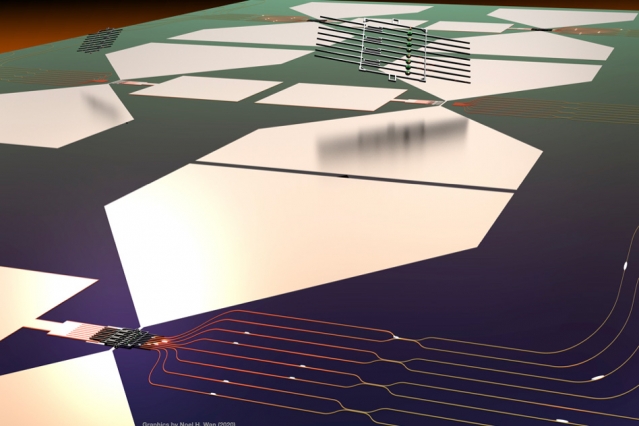

<This graphic depicts a stylized rendering of the quantum photonic chip and its assembly process. The bottom half of the image shows a functioning quantum micro-chiplet (QMC), which emits single-photon pulses that are routed and manipulated on a photonic integrated circuit (PIC). The top half of the image shows how this chip is made: Diamond QMCs are fabricated separately and then transferred into the PIC.>



MIT researchers have developed a process to manufacture and integrate “artificial atoms,” created by

atomic-scale defects in microscopically thin slices of diamond, with photonic circuitry, producing the

largest quantum chip of its type.

The accomplishment “marks a turning point” in the field of scalable quantum processors, says Dirk

Englund, an associate professor in MIT’s Department of Electrical Engineering and Computer Science.

Millions of quantum processors will be needed to build quantum computers, and the new research

demonstrates a viable way to scale up processor production, he and his colleagues note.

Unlike classical computers, which process and store information using bits represented by either 0s and

1s, quantum computers operate using quantum bits, or qubits, which can represent 0, 1, or both at the

same time. This strange property allows quantum computers to simultaneously perform multiple

calculations, solving problems that would be intractable for classical computers.



The qubits in the new chip are artificial atoms made from defects in diamond, which can be prodded with

visible light and microwaves to emit photons that carry quantum information. The process, which Englund

and his team describe today in Nature, is a hybrid approach, in which carefully selected “quantum micro

chiplets” containing multiple diamond-based qubits are placed on an aluminum nitride photonic integrated

circuit.

“In the past 20 years of quantum engineering, it has been the ultimate vision to manufacture such artificial

qubit systems at volumes comparable to integrated electronics,” Englund says. “Although there has been

remarkable progress in this very active area of research, fabrication and materials complications have

thus far yielded just two to three emitters per photonic system.”

Using their hybrid method, Englund and colleagues were able to build a 128-qubit system — the largest

integrated artificial atom-photonics chip yet.

“It’s quite exciting in terms of the technology,” says Marko Lončar, the Tiantsai Lin Professor of Electrical

Engineering at Harvard University, who was not involved in the study. “They were able to get stable

emitters in a photonic platform while maintaining very nice quantum memories.”

Other authors on the Nature paper include MIT researchers Noel H. Wan, Tsung-Ju Lu, Kevin C. Chen,

Michael P. Walsh, Matthew E. Trusheim, Lorenzo De Santis, Eric A. Bersin, Isaac B. Harris, Sara L.

Mouradian and Ian R. Christen; with Edward S. Bielejec at Sandia National Laboratories.

Quality control for chiplets

The artificial atoms in the chiplets consist of color centers in diamonds, defects in diamond’s carbon

lattice where adjacent carbon atoms are missing, with their spaces either filled by a different element or

left vacant. In the MIT chiplets, the replacement elements are germanium and silicon. Each center

functions as an atom-like emitter whose spin states can form a qubit. The artificial atoms emit colored

particles of light, or photons, that carry the quantum information represented by the qubit.

Diamond color centers make good solid-state qubits, but “the bottleneck with this platform is actually

building a system and device architecture that can scale to thousands and millions of qubits,” Wan

explains. “Artificial atoms are in a solid crystal, and unwanted contamination can affect important

quantum properties such as coherence times. Furthermore, variations within the crystal can cause the

qubits to be different from one another, and that makes it difficult to scale these systems.”

Instead of trying to build a large quantum chip entirely in diamond, the researchers decided to take a

modular and hybrid approach. “We use semiconductor fabrication techniques to make these small

chiplets of diamond, from which we select only the highest quality qubit modules,” says Wan. “Then we

integrate those chiplets piece-by-piece into another chip that ‘wires’ the chiplets together into a larger

device.”

The integration takes place on a photonic integrated circuit, which is analogous to an electronic

integrated circuit but uses photons rather than electrons to carry information. Photonics provides the

underlying architecture to route and switch photons between modules in the circuit with low loss. The

circuit platform is aluminum nitride, rather than the traditional silicon of some integrated circuits.

"The diamond color centers emit in the visible spectrum. Traditional silicon, however, absorbs visible light,

which is why we turn to aluminum nitride for our photonics platform, as it is transparent in that regime," Lu

explains. "Furthermore, aluminum nitride can support photonic switches that are functional at cryogenic

temperatures, which we operate at for controlling our color centers."

Using this hybrid approach of photonic circuits and diamond chiplets, the researchers were able to

connect 128 qubits on one platform. The qubits are stable and long-lived, and their emissions can be

tuned within the circuit to produce spectrally indistinguishable photons, according to Wan and colleagues.

A modular approach

While the platform offers a scalable process to produce artificial atom-photonics chips, the next step will

be to “turn it on,” so to speak, to test its processing skills.

“This is a proof of concept that solid-state qubit emitters are very scalable quantum technologies,” says

Wan. “In order to process quantum information, the next step would be to control these large numbers of

qubits and also induce interactions between them.”

The qubits in this type of chip design wouldn’t necessarily have to be these particular diamond color

centers. Other chip designers might choose other types of diamond color centers, atomic defects in other

semiconductor crystals like silicon carbide, certain semiconductor quantum dots, or rare-earth ions in

crystals. “Because the integration technique is hybrid and modular, we can choose the best material

suitable for each component, rather than relying on natural properties of only one material, thus allowing

us to combine the best properties of each disparate material into one system,” says Lu.

Finding a way to automate the process and demonstrate further integration with optoelectronic

components such as modulators and detectors will be necessary to build even bigger chips necessary for

modular quantum computers and multichannel quantum repeaters that transport qubits over long

distances, the researchers say.
